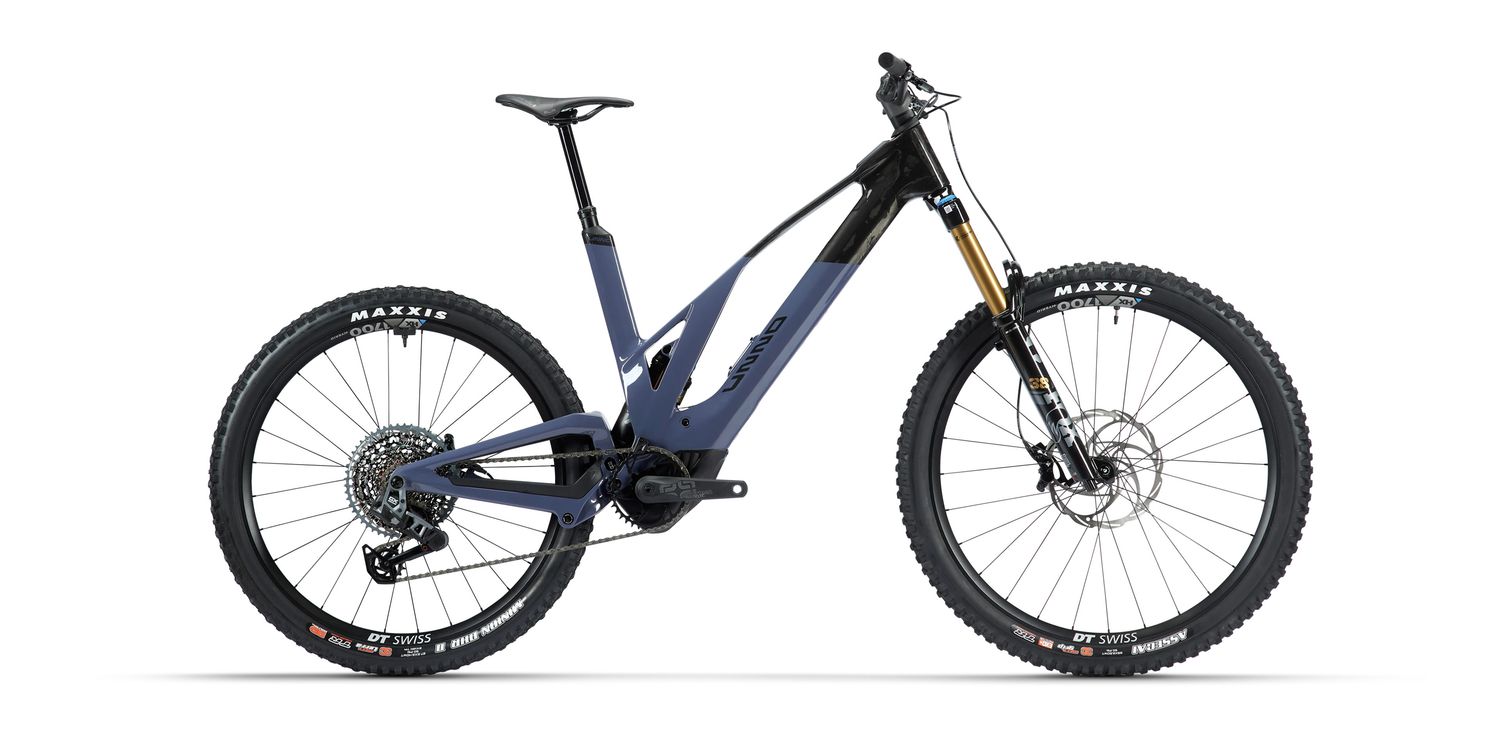

Unno Mith Race
$10 595.00
In stock: 1 available
Product Details
Brand: Unno
Unno Mith
18 road laps all day, anyone?
This is the ultimate in EMTB performance. This bike has the geometry, suspension, and drive to conquer anything from the toughest technical climbs to the fastest chunky descents. The suspension linkage's progressive design is intended to run the shock at 35-40% sag, which makes it extra plush in the chop, but still perfectly supportive on big hits. Equipped with SRAM GX Transmission electric shifting, this e-bike can actually shift under load! The Bosch Performance CX drive unit is among the best in the industry, and has the grunt to climb long and steep, and the smarts to not overpower you in the tech. The 750Wh battery is equipped to provide all day riding without the dreaded battery anxiety kicking in.
Plus it looks really cool!
Specifications
SSppeeccss
Check the Race build
Unno's most demanded spec. Featuring Fox Factory suspensions, SRAM GX AXS T-type transmission and DT Swiss 1700 wheelsets.
-
Frame
Unno MITH -
Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
-
Motor
Bosch Performance Line CX -
Bosch Smart System. Comptabile with Bosch Connectmodule. 85Nm. Rim Magnet.
-
Display
Bosch KIOX 300 -
Integrated screen. Navigation functions.
-
Controller
Bosch Remote LED -
Control Unit BRC3600 Smart System.
-
Battery
Bosch 750Wh. -
Integrated.
-
Headset
Acros Internal Cable Routing -
IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.
Suspensions
-
Fork
Fox 38 Factory -
170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
-
Shock
Fox Float X2 Factory -
230x65mm. Kashima Coating. 2-pos lever. VVC Rebound.
Adjustments: HSC, LSC, HSR, LSR.
Transmission
-
Derailleur
SRAM GX AXS T-Type -
12 speed. AXS Wireless. T-type.
-
Controller
SRAM AXS Pod -
12 speed. Wireless.
-
Chainring
E*Thirteen E*spec -
Aluminium, 36T, Bosch Gen4 Direct Mount.
-
Cassette
SRAM GX T-Type -
XS-1275. 12 speed.
-
Chain
SRAM GX T-Type -
12 speed. Flat top.
-
Crankset
E*Thirteen E*spec plus -
160mm for Bosch Gen4.
Wheelset
-
Wheels
DT Swiss HX1700 Spline -
Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 350 hub. 30mm inner width.
-
Front Tyre
Maxxis Assegai
-
29x2.40. Folding Black/Black.
-
Rear tyre
Maxxis Minion DHRII
-
27.5x2.40. Folding Black/Black.
Brakeset
-
Brakes
Formula Cura 4 -
4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
-
Discs
Formula Monolitic -
220mm front and 203mm rear rotors. Thickness: 2.35mm. Extreme lateral stiffness, anti-noise and anti-vibrations design.
Cockpit and seat
-
Cockpit
DEUX Enduro Integrated -
With integrated and hidden wedge. Internal fork tube clamp. 800mm width. 40mm length. 20mm rise.
-
Dropper
OneUp V3 -
Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3.
-
Saddle
Selle Italia -
SLR Boost.
